EUHT Intelligent Industrial Products

EUHT Intelligent Industrial Products

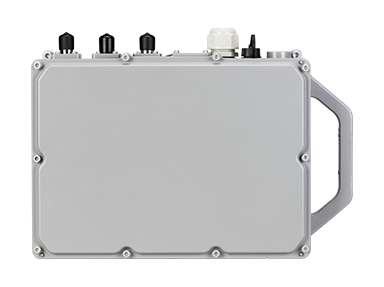

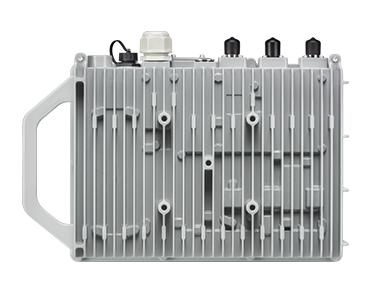

EUHT Central Access Equipment NPEC01P-01#20

Size

375mm×242mm×98mm

Weight

<4kg

Protection level

IP65

Power supply

220V/AC

Power consumption

24W

Data interface

Gigabit optical fiber

Working frequency band

5150MHz~5180MHz configurable

Working bandwidth

40MHz

Transmitting power

Maximum 18dBm, configurable

Data bandwidth

≥100Mbps

Antenna

Support external dual polarized directional or omnidirectional antenna

Speed adaptability

160km/h

Transmission reliability

>99.999%

Transmission delay

<5ms(end-to-end)

Typical application scene

Industrial Interconnection

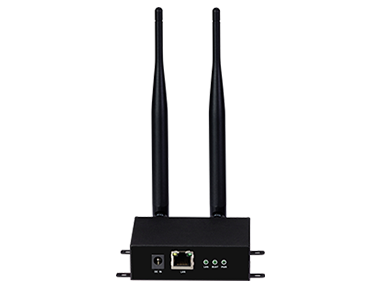

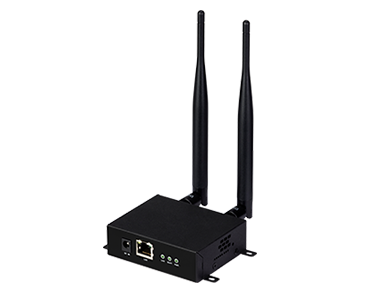

EUHT Terminal Access Equipment NPEL06P-01#19

Size

87mm×70mm×28mm

Weight

215g

Power supply

12V/1.5A

Power consumption

5W

Working frequency band

5150MHz~5180MHz configurable

Working bandwidth

40MHz

Antenna

Support external dual polarized directional or omnidirectional antenna

LAN interface

10/100M self-adaption

Typical application scene

Industrial interconnection

EUHT Network Management Software#25

System running environment

Support Windows 7, windows 10 32-bit, 64 bit

operating system

Functions

Monitoring the real-time traffic information of

the whole network equipment

Monitor the status of network controller,

central access equipment and terminal

access equipment

Record the historical alarm information of net-

work controller center access equipment and

terminal access equipment

View and modify the parameters of central acc-

ess equipment and terminal access equipment

Upgrade the software version of network cont-

roller, central access equipment and terminal

access equipment

View and modify the network topology of all

network equipment

EUHT Network Management Controller NPIPC01C#26

Size

127.4mm x 103mm x 30mm

Weight

280g

Protection level

IP30

CPU

NS115 Dual A9

Memory

512MB DDR3

EMMC

4GB EMMC5.0

Operating system

Linux

Interface

10 / 100Mbps network port, USB console, TF card slot, dc5.5 power supply port

Indicator light

Power light, network indicator light

Power Supply

12V / 1.5A adapter

Shell material

Sheet Metal

Typical application scenarios

Intelligent industry, video surveillance rural wide area coverage

EUHT Dongle NPEU01M-01#27

Size

102mm×37mm×13mm

Weight

50g

Protection level

IP30

Power supply

5V/0.5A

Power waste

<2.5W

Interface

USB2.0

Working frequency band

5150MHz ~ 5850MHz, configurable

Working bandwidth

40MHz

Antenna

Built in EUHT 2T2R antenna

Working temperature

0℃-40℃

Working humidity

10% - 90% non-condensing

Typical application scenarios

Office space, conference hall and large venues

EUHT1.0 Industrial Module NPES01M-01#28

Size

45mm×28mm×2.5mm

Weight

6.8g

Power supply

5.0V-5.5V

Power waste

<3W

Working temperature

-40℃-85℃

Working frequency

5150MHz-5950MHz

Working bandwidth

20 / 40MHz configurable

Antenna

Built in PF antenna or external omnidirectional rubber rod antenna

Communication port

USB/SDIO/SPI/UART

Transmitting power

Maximum 23dBm

Typical application scenarios

Industrial control, intelligent manufacturing

EUHT Module NPES01M-04#29

Size

51mm×30mm×5mm

Weight

5.6g

Power supply

3.6V-4.2V

Power waste

<2.5W

Working temperature

-40℃-85℃

Working frequency

1785MHz-1805MHz

Working bandwidth

10 / 20MHz

Antenna

Built in PF antenna or external omnidirectional rubber rod antenna

Communication port

USB/SDIO/SPI/UART

Transmitting power

Maximum 20dBm

Typical application scenarios

Industrial control, intelligent manufacturing

EUHT Module NPES01M-05#30

Size

51mm×30mm×5mm

Weight

5.9g

Power supply

3.6V-4.2V

Power waste

<3W

Working temperature

-40℃-85℃

Working frequency

5150MHz-5950MHz

Working bandwidth

20 / 40MHz

Antenna

Built in PF antenna or external omnidirectional rubber rod antenna

Communication port

USB/SDIO/SPI/UART

Transmitting power

Maximum 23dBm

Typical application scenarios

Industrial control, intelligent manufacturing

EUHT Intelligent Industrial Products Solutions
