EUHT Technical Advantages

Comparisons of EUHT-5G Technology with Major Global Wireless Communication Technologies and ITU-5G Requirements (May 2019)

Items EUHT-5G Technology   Wi-Fi   4G LTE ITU-5G Requirements
Reliability Industrial level, 0.3x10-5(actual measurement on metro)

Consumer level, <1×10-3

Consumer level, <1×10-3

Consumer level, <1×10-3, Industrial level, 1×10-5

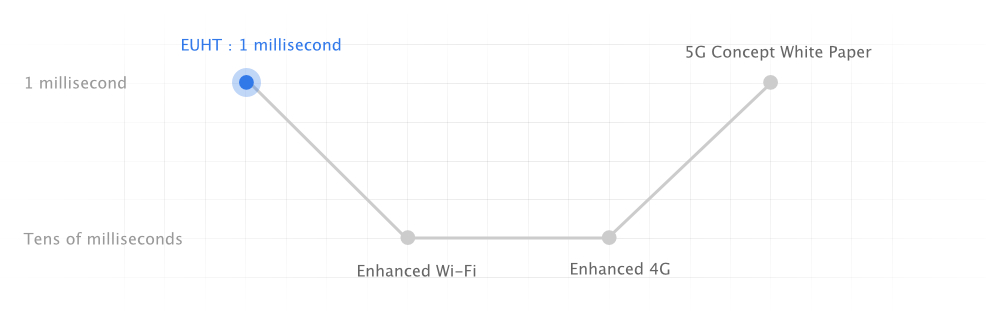

Air Interface Delay

<1ms

No authoritative data

No requirements

Request 1ms

End-to-End Delay

4.2ms(actual measurement on metro)

34ms(actual measurement on metro)

13ms(actual measurement on metro)

Request less than 5ms

Peak Rate

Upload:13Gbps[1]

Download:32Gbps[1]

19.2Gbps

1Gbps

Upload:10Gbps

Download:20Gbps

Number of Connection Points per Square Kilometer

120 Million[1]

Super large-scale connection is not supported

0.1 Million

More than 1 million

Moving Speed

Support high-speed railway moving speed, still remain high performance at 500km/h

Support walking speed, performance drops sharply over 20km/h

Support highway moving speed, performance drops sharply over 160km/h

Request support for 500 km/h

Switching Interrupt Time

0ms(actual measurement on metro)

363ms(actual measurement on metro)

56ms(actual measurement on metro)

0ms

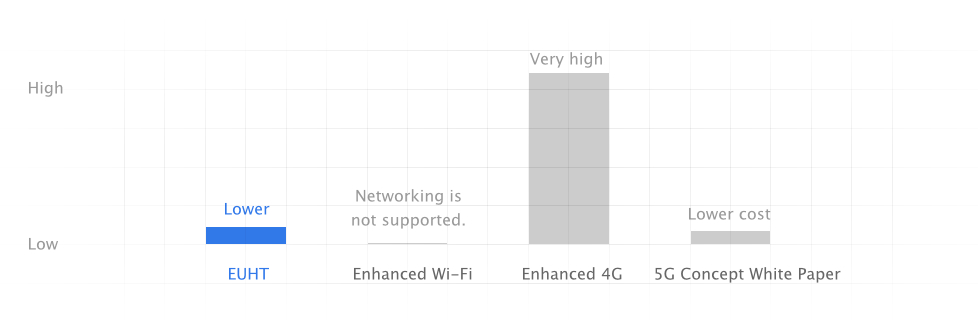

Networking Cost

Low

Very low

High

Very high

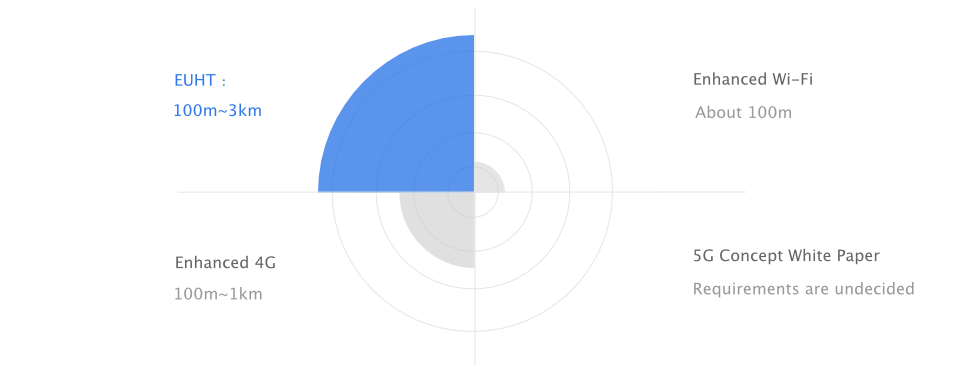

Wireless Coverage Distance

2km

<200m

800m(Typical cellular networking)

FR1(Sub 6GHz)  300m

FR2(28 GHz)   <200m

Industrialization Level

Large-scale industrialization

Large-scale industrialization

Large-scale industrialization

The standard will be posted at 2020

[1] The result was evaluated according to ITU official evaluation document

Comparison conclusions:
  • (1)EUHT-5G is the world’s only industrial-level wireless communication technology that meets the performance requirements of 5G technology (R15/R16) and has been applied in large-scale industrial applications in many fields.
  • (2)EUHT-5G is the only wireless communication technology in the world that supports both high speed moving, high capacity transmission and industrial-level high reliability and low latency requirements.
